SA608 Low voltage high performance mixer FM IF system

SA608 Description

Philips Semiconductors RF Communications Products Product specification Low voltage high performance mixer FM IF system SA608 .
The SA608 is a low voltage high performance monolithic FM IF system incorporating a mixer/oscillator, two limiting intermediate frequency amplifiers,.

SA608 Features

* 3V
* Low power consumption: 3.5mA typical at
* Mixer input to >150MHz
* Mixer conversion power gain of 17dB at 45MHz
* XTAL oscillator effective to 150MHz (L. C. oscillator or external oscillator can be used at higher frequencies)
* RF level meter

SA608 Applications

* and will function down to 2.7V. The RF section is similar to the famous NE605. The audio output is buffered. The RSSI output has an internal amplifier with the feedback pin accessible. The SA608 also has an extra limiter output. This signal is buffered from the output of the limiter and can be used

📥 Download Datasheet

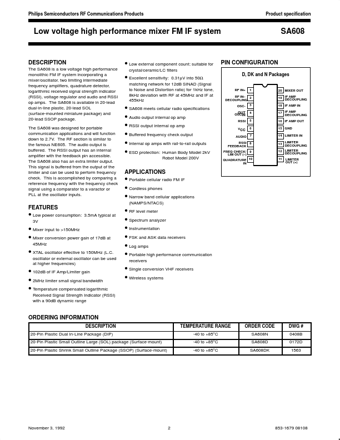

Preview of SA608 PDF
