SA605 High performance low power mixer FM IF system

SA605 Description

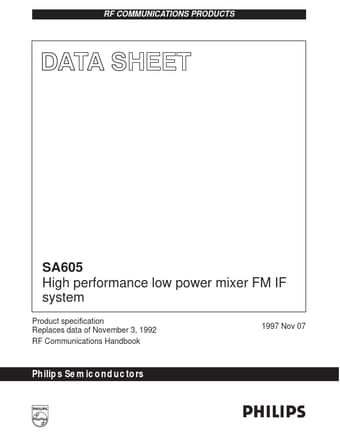

RF COMMUNICATIONS PRODUCTS SA605 High performance low power mixer FM IF system Product specification Replaces data of November 3, 1992 RF Communicati.
The SA605 is a high performance monolithic low-power FM IF system incorporating a mixer/oscillator, two limiting intermediate frequency amplifiers, qu.

SA605 Applications

* For additional technical information please refer to application notes AN1994, 1995 and 1996, which include example application diagrams, a complete overview of the product, and artwork for reference. PIN CONFIGURATION N, D and DK Packages RFIN 1 20 MIXER OUT 19 IF AMP DECOUPLING 18 IF AMP IN 17 I

📥 Download Datasheet

Preview of SA605 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA605
Manufacturer
Philips
File Size
122.06 KB
Datasheet
SA605_PhilipsSemiconductors.pdf
Description
High performance low power mixer FM IF system
