ISP1362 - Single-chip Universal Serial Bus On-The-Go controller

Name: ISP1362
SKU: ISP1362-1303746

Philips

📥 Download Datasheet

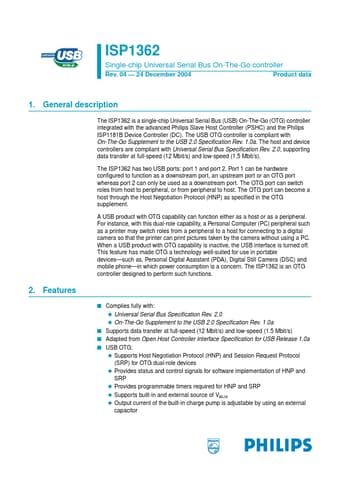

ISP1362 Datasheet Preview — Preview of ISP1362 PDF

Datasheet Details

Part number	ISP1362
Manufacturer	Philips
File Size	574.83 KB
Description	Single-chip Universal Serial Bus On-The-Go controller
Datasheet	ISP1362-Philips.pdf

ISP1362 Product details

Description

The ISP1362 is a single-chip Universal Serial Bus (USB) On-The-Go (OTG) controller integrated with the advanced Philips Slave Host Controller (PSHC) and the Philips ISP1181B Device Controller (DC).

Features

s Complies fully with: x Universal Serial Bus Speciﬁcation Rev. 2.0 x On-The-Go Supplement to the USB 2.0 Speciﬁcation Rev. 1.0a s Supports data transfer at full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) s Adapted from Open Host Controller Interface Speciﬁcation for USB Release 1.0a s USB OTG: x Supports Host Negotiation Protocol (HNP) and Session Request Protocol (SRP) for OTG dual-role devices x Provides status and control signals for software implementation of HNP and SRP x Provides progra.
