74F8965 - 9-Bit address/data Futurebus transceiver

Name: 74F8965
SKU: 74F8965-491259

Philips

📥 Download Datasheet

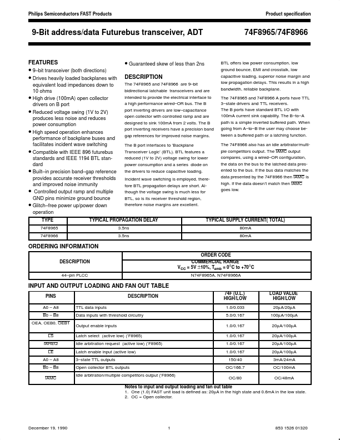

74F8965 Datasheet Preview — Preview of 74F8965 PDF

Datasheet Details

Part number	74F8965
Manufacturer	Philips
File Size	119.99 KB
Description	9-Bit address/data Futurebus transceiver
Datasheet	74F8965_PhilipsSemiconductors.pdf

74F8965 Product details

Description

The 74F8965 and 74F8966 are 9 bit bidirectional latchable transceivers and are intended to provide the electrical interface to a high performance wired OR bus. capacitance open collector with controlled ramp and are designed to sink 100mA from 2 volts.

Features

9.
bit transceiver (both directions).
Drives heavily loaded backplanes with equivalent load impedances down to 10 ohms.
High drive (100mA) open collector drivers on B port.
Reduced voltage swing (1V to 2V) produces less noise and reduces power consumption.
High speed operation enhances performance of backplane buses and facilitates incident wave switching.
Compatible with IEEE 896 futurebus standards and IEEE 1194 BTL standard.
