74F8963 - 9-Bit latched bidirectional Futurebus transceivers

Name: 74F8963
SKU: 74F8963-491258

Philips

📥 Download Datasheet

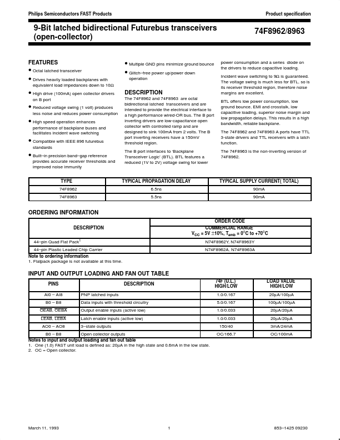

74F8963 Datasheet Preview — Preview of 74F8963 PDF

Datasheet Details

Part number	74F8963
Manufacturer	Philips
File Size	97.23 KB
Description	9-Bit latched bidirectional Futurebus transceivers
Datasheet	74F8963_PhilipsSemiconductors.pdf

74F8963 Product details

Description

The 74F8962 and 74F8963 are octal bidirectional latched transceivers and are intended to provide the electrical interface to a high performance wired-OR bus.

Features

Octal latched transceiver.
Drives heavily loaded backplanes with on B port power consumption and a series diode on the drivers to reduce capacitive loading. Incident wave switching to 9Ω is guaranteed. The voltage swing is much less for BTL, so is its receiver threshold region, therefore noise margins are excellent. BTL offers low power consumption, low ground bounce, EMI and crosstalk, low capacitive loading, superior noise margin and low propagation delays. This results in.
