Datasheet Details
| Part number | VTL5C8 |
|---|---|
| Manufacturer | PerkinElmer Optoelectronics |
| File Size | 54.59 KB |
| Description | Low Cost Axial Vactrols |
| Datasheet |
 VTL5C8 Datasheet
|
|
|
| Part number | VTL5C8 |
|---|---|
| Manufacturer | PerkinElmer Optoelectronics |
| File Size | 54.59 KB |
| Description | Low Cost Axial Vactrols |
| Datasheet |
VTL5C8 Datasheet
|
|
|
|

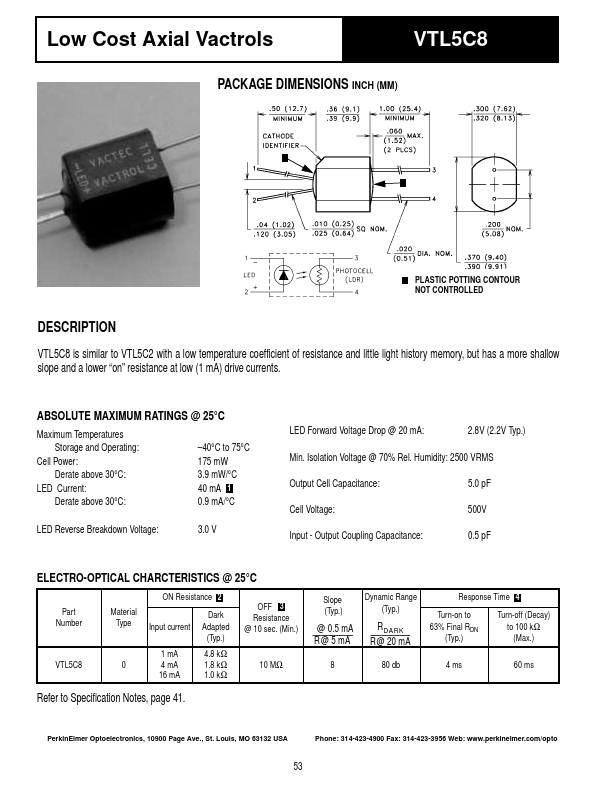

VTL5C8 is similar to VTL5C2 with a low temperature coefficient of resistance and little light history memory, but has a more shallow slope and a lower “on” resistance at low (1 mA) drive currents. 40°C to 75°C 175 mW 3.9 mW/°C 40 mA 1 0.9 mA/°C LED Reverse Breakdown Voltage: 3.0 V LED Forward Voltage Drop @ 20 mA: 2.8V (2.2V Typ.) Min.Isolat
