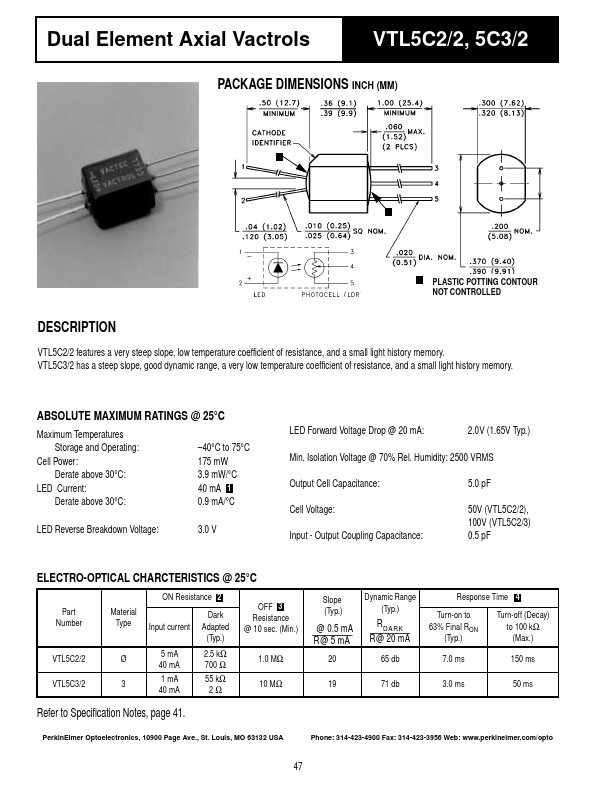

VTL5C2-2
DESCRIPTION
VTL5C2/2 features a very steep slope, low temperature coefficient of resistance, and a small light history memory. VTL5C3/2 has a steep slope, good dynamic range, a very low temperature coefficient of resistance, and a small light history memory.
ABSOLUTE MAXIMUM RATINGS @ 25°C
Maximum Temperatures Storage and Operating:
Cell Power: Derate above 30°C:
LED Current: Derate above 30°C:
- 40°C to 75°C 175 m W 3.9 m W/°C 40 m A 1 0.9 m A/°C
LED Reverse Breakdown Voltage:
3.0 V
LED Forward Voltage Drop @ 20 m A:
2.0V (1.65V Typ.)
Min. Isolation Voltage @ 70% Rel. Humidity: 2500 VRMS
Output Cell Capacitance:
5.0 p F
Cell Voltage: Input
- Output Coupling Capacitance:
50V (VTL5C2/2), 100V (VTL5C2/3) 0.5 p F
ELECTRO-OPTICAL CHARCTERISTICS @ 25°C
Part Number
VTL5C2/2 VTL5C3/2
Material Type
Ø 3
ON Resistance 2
Input current
5 m A 40 m A 1 m A 40 m A
Dark Adapted
(Typ.)
2.5 kΩ 700 Ω
55 kΩ 2Ω
OFF 3 Resistance @ 10 sec. (Min.)
1.0 MΩ
10 MΩ
Slope (Typ.)
--R-@---@----0--5-.-5--m--m-...
