PI74ALVCH16823 - 18-Bit Bus-Interface Flip-Flop with 3-State Outputs

Pericom Semiconductor Corporation

The PI74ALVCH16823 by Pericom Semiconductor Corporation is a 18-Bit Bus-Interface Flip-Flop with 3-State Outputs. Below is the official datasheet preview.

📥 Download Datasheet

PI74ALVCH16823 18-Bit Bus-Interface Flip-Flop with 3-State Outputs by Pericom Semiconductor Corporation - Datasheet Preview — Official preview page of the **PI74ALVCH16823** 18-Bit Bus-Interface Flip-Flop with 3-State Outputs datasheet (Pericom Semiconductor Corporation).

Datasheet Details

Part number	PI74ALVCH16823
Manufacturer	Pericom Semiconductor Corporation
File Size	327.81 KB
Description	18-Bit Bus-Interface Flip-Flop with 3-State Outputs
Datasheet	PI74ALVCH16823_PericomSemiconductorCorporation.pdf

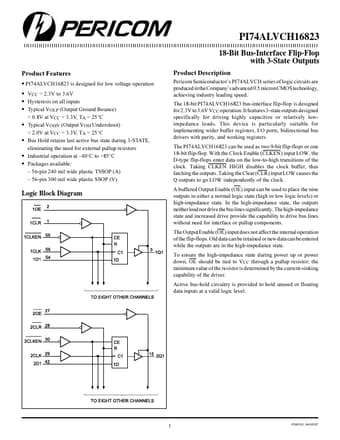

Additional preview pages of the PI74ALVCH16823 datasheet.

PI74ALVCH16823 Product details

Description

Pericom Semiconductors PI74ALVCH series of logic circuits are produced in the Companys advanced 0.5 micron CMOS technology, achieving industry leading speed.

Features

PI74ALVCH16823 is designed for low voltage operation.
VCC = 2.3V to 3.6V.
Hysteresis on all inputs.
Typical VOLP (Output Ground Bounce) < 0.8V at VCC = 3.3V, TA = 25°C.
Typical VOHV (Output VOH Undershoot) < 2.0V at VCC = 3.3V, TA = 25°C.
Bus Hold retains last active bus state during 3-STATE, eliminating the need for external pullup resistors.
Industrial operation at 40°C to +85°C.
Packages available: 56-pin 240 mil wide.
