PE46130 - Monolithic Phase & Amplitude Controller

Name: PE46130
SKU: PE46130-1399818

Peregrine Semiconductor

📥 Download Datasheet

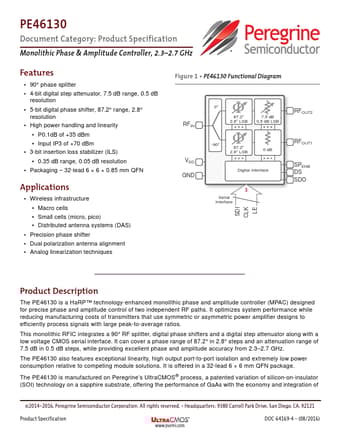

PE46130 Datasheet Preview — Preview of PE46130 PDF

Datasheet Details

Part number	PE46130
Manufacturer	Peregrine Semiconductor
File Size	649.96 KB
Description	Monolithic Phase & Amplitude Controller
Datasheet	PE46130-PeregrineSemiconductor.pdf

PE46130 Product details

Description

The PE46130 is a HaRP™ technology-enhanced monolithic phase and amplitude controller (MPAC) designed for precise phase and amplitude control of two independent RF paths.

Features

90° phase splitter.
4-bit digital step attenuator, 7.5 dB range, 0.5 dB resolution.
5-bit digital phase shifter, 87.2° range, 2.8° resolution.
High power handling and linearity.
P0.1dB of +35 dBm.
Input IP3 of +70 dBm.
3-bit insertion loss stabilizer (ILS).
0.35 dB range, 0.05 dB resolution.
Packaging.
32-lead 6 × 6 × 0.85 mm QFN.
