PE4013S - N-Channel Enhancement Mode Power MOSFET

ChipSourceTek

📥 Download Datasheet

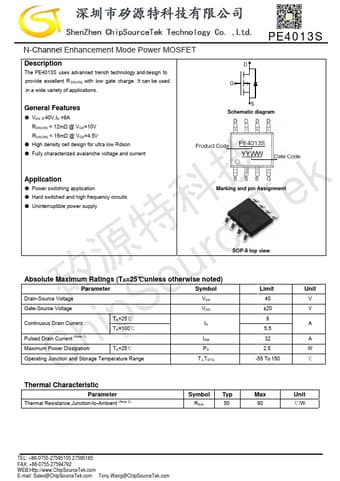

PE4013S Datasheet Preview — Preview of PE4013S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PE4013S
Manufacturer	ChipSourceTek
File Size	1.47 MB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	PE4013S-ChipSourceTek.pdf

PE4013S Product details

Description

The PE4013S uses advanced trench technology and design to provide excellent R DS(ON) with low gate charge.

Features

VDS >40V,ID =8A S Schematic diagram RDS(ON) < 12mΩ @ VGS=10V RDS(ON) < 15mΩ @ VGS=4.5V.
High density cell design for ultra low Rdson.
Fully characterized avalanche voltage and current.
