HG2-AC220V-F, HG2-AC24V-F - RELAYS

HG2-AC220V-F Description

HG Relay for control panel of HG RELAYS20A (2c/3c/4c) RoHS compliant .

HG2-AC220V-F Features

* 1. High-capacity and long life The electrical life of this high capacity is 20A 100,000 operations (250 V AC). It can be used for 1.5kW (3-phase 200 V) motor control. 2. High breakdown voltage Both between contacts, and between contacts and coil, high breakdown voltage is 2,000 V for 1 minute. 3. Ea

HG2-AC220V-F Applications

* 1. HP relays enjoy wide use in various applications, particularly in automation controls and remote controls. 2. Industrial machinery For controlling positioning, pressure, and temperature in molding equipment, boilers, pumps, charging pressure equipment, measuring and evaluation equipment, textile

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HG2-AC220V-F, HG2-AC24V-F. Please refer to the document for exact specifications by model.

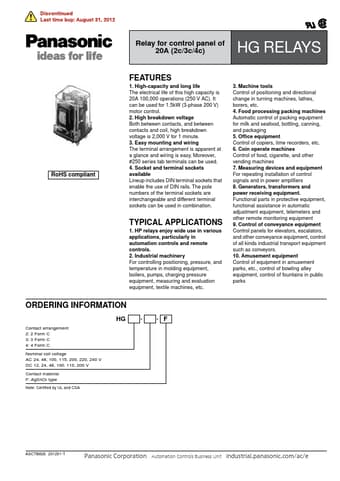

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HG2-AC220V-F, HG2-AC24V-F
Manufacturer
Panasonic
File Size
127.92 KB
Datasheet
HG2-AC24V-F-Panasonic.pdf
Description
RELAYS
Note
This datasheet PDF includes multiple part numbers: HG2-AC220V-F, HG2-AC24V-F.
Please refer to the document for exact specifications by model.
