DZ2J02400L - Silicon epitaxial planar type Zener Diode

Product Overview

Panasonic

📥 Download Datasheet

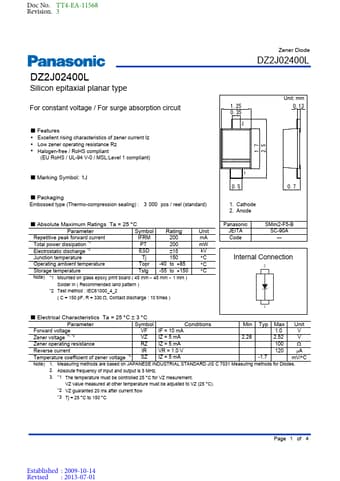

DZ2J02400L Silicon epitaxial planar type Zener Diode by Panasonic - Datasheet Preview — Datasheet preview – DZ2J02400L

Datasheet Details

Part number	DZ2J02400L
Manufacturer	Panasonic
File Size	244.96 KB
Description	Silicon epitaxial planar type Zener Diode
Datasheet	DZ2J02400L Datasheet
Additional preview pages of the DZ2J02400L datasheet.

Product details

Features

s.
Excellent rising characteristics of zener current Iz.
Low zener operating resistance Rz.
Halogen-free / RoHS compliant (EU RoHS / UL-94 V-0 / MSL:Level 1 compliant) 1.7 2.5 Product Standards Zener Diode DZ2J02400L 1.25 0.35 2 Unit: mm 0.13.
Marking Symbol: 1J.
Packaging Embossed type (Thermo-compression sealing) : 3 000 pcs / reel (standard) 1 0.5 1. Cathode 2. Anode 0.7.
Absolute Maximum Ratings Ta = 25 C Parameter Symbol Rating Repetitive peak forw.
