DZ23-B18, DZ2 - Dual Common-Cathode Zener Diodes

Name: DZ23-B18
SKU: DZ23-B18-229507

General Semiconductor

The DZ23-B18 by General Semiconductor is a Dual Common-Cathode Zener Diodes. Below is the official datasheet preview.

Datasheet Details

Part number	DZ23-B18, DZ2
Manufacturer	General Semiconductor
File Size	404.65 KB
Description	Dual Common-Cathode Zener Diodes
Datasheet	DZ2-3.pdf
Note	This datasheet PDF includes multiple part numbers: DZ23-B18, DZ2. Please refer to the document for exact specifications by model.

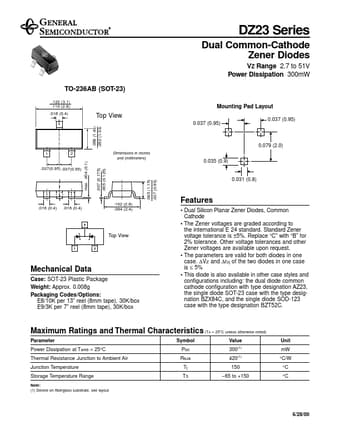

Additional preview pages of the DZ23-B18 datasheet.

Dual Silicon Planar Zener Diodes, Common Cathode.
The Zener voltages are graded according to the international E 24 standard. Standard Zener voltage tolerance is ±5%. Replace “C” with “B” for 2% tolerance. Other voltage tolerances and other Zener voltages are available upon request.
The parameters are valid for both diodes in one case. ∆VZ and ∆rzj of the two diodes in one case is ≤ 5%.
This diode is also available in other case styles and configurations inc.
