CND0313A - Infrared Optical

Panasonic

📥 Download Datasheet

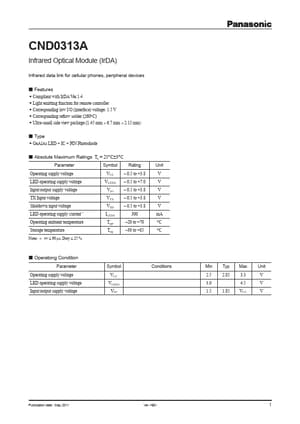

CND0313A Datasheet Preview — Preview of CND0313A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: CND0313A
Manufacturer: Panasonic
File Size: 500.39 KB
Datasheet: CND0313A-Panasonic.pdf
Description: Infrared Optical

CND0313A Product details

Features

es.
Compliant with IrDA Ver.1.4.
Light emitting function for remote controller.
Corresponding low I/O (interface) voltage: 1.5 V.
Corresponding reﬂow solder (260°C).
Ultra-small side view package (1.45 mm × 6.7 mm × 2.15 mm）.
Type.
GaAlAs LED + IC + PIN Photodiode.
Absolute Maximum Ratings Ta = 25°C±3°C Parameter Symbol Rating Operating supply voltage LED operating supply voltage Input/output supply voltage TX Input voltage S.
