CND0333A - Infrared Optical

Features

  • es.
  • Compliant with IrDA Ver.1.4.
  • Light emitting function for remote controller.
  • Corresponding low I/O (interface) voltage: 1.5 V.
  • Corresponding reflow solder (260°C).
  • Ultra-small top view package (1.5 mm × 8.2 mm × 1.7 mm）.
  • Type.
  • GaAlAs LED + IC + PIN Photodiode.
  • Absolute Maximum Ratings Ta = 25°C±3°C Parameter Symbol Rating Operating supply voltage LED operating supply voltage Input/output supply voltage TX Input voltage Shut.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CND0004A Optical Transceiver Module Panasonic Semiconductor
CND0201A Optical Transmission Module Panasonic Semiconductor
CND2047 10GHz Frequency Divider by 4 Fixed Modulus Prescaler United Monolithic Semiconductors
CND2047-DAG GaAs Monolithic Microwave IC United Monolithic Semiconductors
CND2050 0.5-11.5 GHz Divide by 4 Static Prescaler United Monolithic Semiconductors

Other Datasheets by Panasonic

Part Number Description
CND0313A Infrared Optical

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

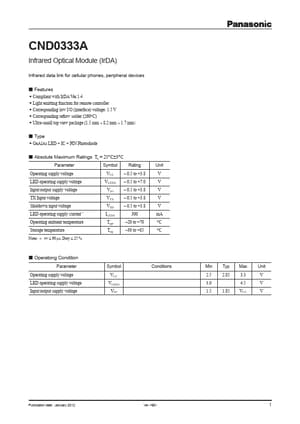

This product complies with the RoHS Directive (EU 2002/95/EC). CND0333A Infrared Optical Module (IrDA) Infrared data link for cellular phones, peripheral devices  Features  Compliant with IrDA Ver.1.4  Light emitting function for remote controller  Corresponding low I/O (interface) voltage: 1.5 V  Corresponding reflow solder (260°C)  Ultra-small top view package (1.5 mm × 8.2 mm × 1.7 mm）  Type  GaAlAs LED + IC + PIN Photodiode  Absolute Maximum Ratings Ta = 25°C±3°C Parameter Symbol Rating Operating supply voltage LED operating supply voltage Input/output supply voltage TX Input voltage Shutdown input voltage LED operating supply current * Operating ambient temperature VCC VLEDA VIO VTX VSD ILEDA Topr – 0.5 to +3.8 – 0.5 to +7.0 – 0.5 to +3.8 – 0.5 to +3.8 – 0.
