CNB1304H - Reflective photosensor

Panasonic

📥 Download Datasheet

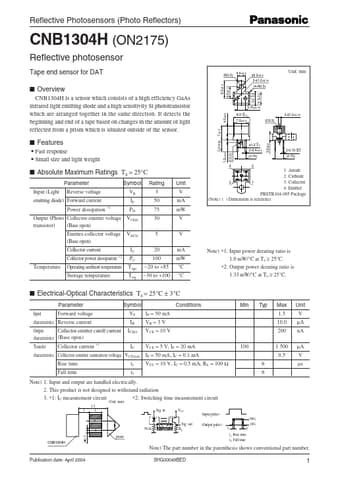

CNB1304H Datasheet Preview — Preview of CNB1304H PDF

datasheet Preview Page 2

Datasheet Details

Part number	CNB1304H
Manufacturer	Panasonic ↗
File Size	68.79 KB
Description	Reflective photosensor
Datasheet	CNB1304H-Panasonic.pdf

CNB1304H Product details

Features

s.
Fast response.
Small size and light weight.
Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Unit Input (Light Reverse voltage emitting diode) Forward current Power dissipation.
1 Output (Photo Collector-emitter voltage transistor) (Base open) VR IF PD VCEO 3 50 75 30 V mA mW V Emitter-collector voltage VECO (Base open) 5 V Collector current IC 20 mA Collector power dissipation.
2 PC 100 mW Temperature Operating ambient temperature Topr.
