CNB1002 - Reflective Photosensors

Panasonic Semiconductor

Datasheet Details

Part number	CNB1002
Manufacturer	Panasonic ↗ Semiconductor
File Size	46.19 KB
Description	Reflective Photosensors
Datasheet	CNB1002_PanasonicSemiconductor.pdf

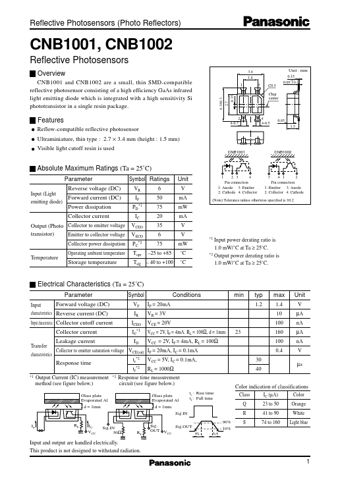

Reflow-compatible reflective photosensor Ultraminiature, thin type : 2.7 × 3.4 mm (height : 1.5 mm) Visible light cutoff resin is used Absolute Maximum Ratings (Ta = 25˚C) Parameter Symbol Ratings Unit Reverse voltage (DC) VR 6 V Input (Light Forward current (DC) emitting diode) IF 50 mA Power dissipation PD.
1 75 mW Collector current Output (Photo Collector to emitter voltage transistor) Emitter to collector voltage Collector power dissipation Operating ambient temperature Tempe.
