C5034 Silicon NPN Transistor

C5034 Description

Power Transistors 2SC5034 Silicon NPN triple diffusion planar type For high breakdown voltage high-speed switching Unit: mm 4.6±0.2 s .

C5034 Features

* 9.9±0.3 φ3.2±0.1 2.9±0.2 q High collector to emitter VCEO q High-speed switching q Full-pack package with outstanding insulation, which can be in- stalled to the heat sink with one screw 4.1±0.2 8.0±0.2 Solder Dip / s Absolute Maximum Ratings (TC=25˚C) 15.0±0.3 3.0±0.2 1.2±0.15 1.45±0.15

📥 Download Datasheet

Preview of C5034 PDF

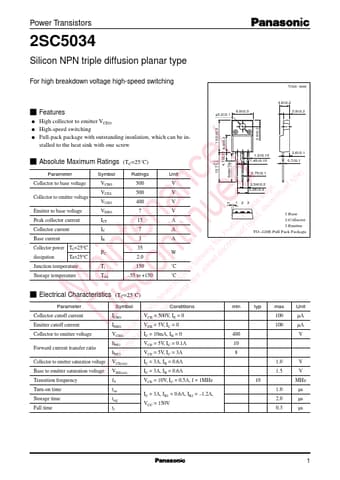

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C5034
Manufacturer
Panasonic
File Size
222.75 KB
Datasheet
C5034-Panasonic.pdf
Description
Silicon NPN Transistor
