C3946 Silicon NPN Transistor

C3946 Description

Power Transistors 2SC3946 Silicon NPN triple diffusion planar type For color TV horizontal deflection driver 10.0±0.2 5.5±0.2 Unit: mm 4.2±0.2 2.7.

C3946 Features

* High collector to emitter voltage VCEO φ 3.1±0.1
* Large collector power dissipation PC
* Full-pack package which can be installed to the heat sink with one screw 1.4±0.1 1.3±0.2 I Absolute Maximum Ratings TC = 25°C 0.8±0.1 0.5+
* 00..12 / Parameter Symbol

C3946 Applications

* or general electronic equipment (such as office equipment, communications equipment, measuring instruments and household appliances). Consult our sales staff in advance for information on the following applications:
* Special applications (such as for airplanes, aerospace, automobiles, traff

📥 Download Datasheet

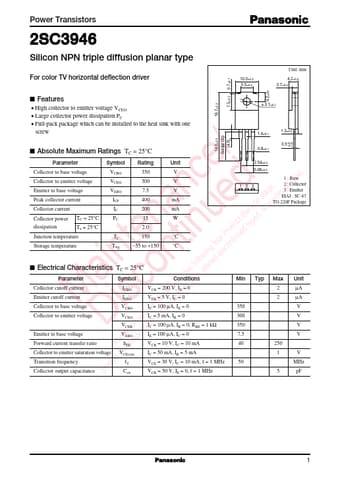

Preview of C3946 PDF
