C3942 2SC3942

C3942 Description

Power Transistors 2SC3942 Silicon NPN triple diffusion planar type For color TV chroma output Unit: mm 4.2±0.2 16.7±0.3 7.5±0.2 0.7±0.1 10.0±0.2 .

C3942 Features

* 5.5±0.2 2.7±0.2
* High collector-emitter voltage (Base open) VCEO
* Small collector output capacitance (Common base, input open cir- φ 3.1±0.1 cuited) Cob
* Full-pack package which can be installed to the heat sink with one screw 1.4±0.1 1.3±0.2 /
* Absolute Maxim

C3942 Applications

* or general electronic equipment (such as office equipment, communications equipment, measuring instruments and household appliances). Consult our sales staff in advance for information on the following applications:
* Special applications (such as for airplanes, aerospace, automobiles, traff

📥 Download Datasheet

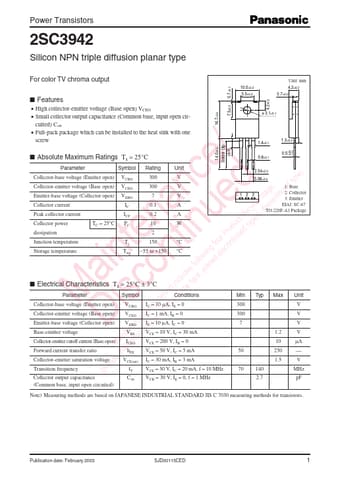

Preview of C3942 PDF
