C1846 2SC1846

C1846 Description

Power Transistors 2SC1846 Silicon NPN epitaxial planar type For medium output power amplification Complementary to 2SA0885 φ 3.16±0.1 8.0+ *.

C1846 Features

* 3.05±0.1
* Low collector-emitter saturation voltage VCE(sat)
* Output of 3 W can be obtained by a complementary pair with 2SA0885
* TO-126B package which requires no insulation plate for installation to the heat sink 1.9±0.1 16.0±1.0 /
* Absolute Maximum Ratings Ta =

📥 Download Datasheet

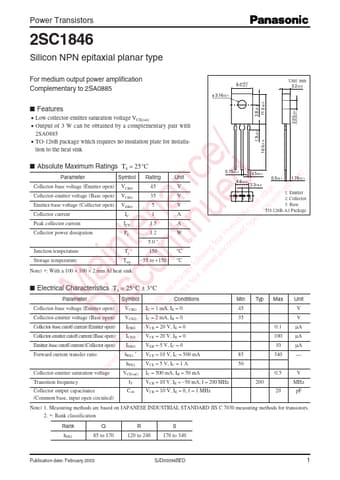

Preview of C1846 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C1846
Manufacturer
Panasonic
File Size
252.00 KB
Datasheet
C1846-Panasonic.pdf
Description
2SC1846
