C184B - Silicon Controlled Rectifier

Download the C184B datasheet PDF (C184 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for silicon controlled rectifier.

Features

  • . . High di/dt Ratings. . . High dv/dt Capability. . . Excellent Surge and 12 t Ratings Providing Easy Fusing. . . Guaranteed Maximum Tum-Off Time with Selections Available. . . Rugged Hermetic Package with Long Creepage Path.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (C184-ETC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number C184B
Manufacturer Unknown Manufacturer
File Size 440.97 KB
Description Silicon Controlled Rectifier
Datasheet download datasheet C184B Datasheet

📁 Similar Datasheet

  • C1841 - 2SC1841 (NEC)
  • C1842 - NPN Silicon Transistor (NEC)
  • C1844 - NPN SILICON TRANSISTOR (NEC)
  • C1845 - 2SC1845 (NEC)
  • C1846 - 2SC1846 (Panasonic)
  • C1847 - 2SC1847 (Panasonic)
  • C1809 - 2SC1809 (Rohm)
  • C180A - SILICON CONTROLLED RECTFIERS (Digitron Semiconductors)
  • C180B - SILICON CONTROLLED RECTFIERS (Digitron Semiconductors)
  • C180C - SILICON CONTROLLED RECTFIERS (Digitron Semiconductors)
Other Datasheets by ETC
  • C184 - Silicon Controlled Rectifier
  • C184A - Silicon Controlled Rectifier
  • C184C - Silicon Controlled Rectifier
  • C184D - Silicon Controlled Rectifier
  • C184E - Silicon Controlled Rectifier
  • C184M - Silicon Controlled Rectifier
  • C1803 - NPN Silicon Transistor
  • C1816 - 2SC1816

Full PDF Text Transcription

Click to expand full text

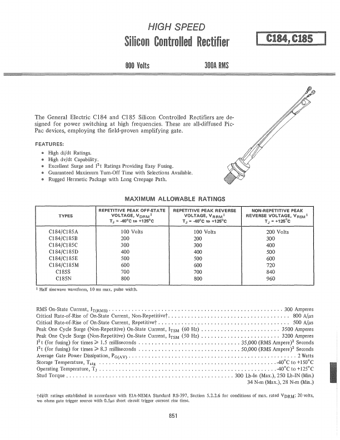

SPEED !icon Controlled Rectifier 800 Volts 300A RMS The General Electric C184 and Cl85 Silicon Controlled Rectifiers are designed for power switching at high frequencies. These are all-diffused PicPac devices, employing the field-proven amplifying gate. FEATURES: .. High di/dt Ratings. .. High dv/dt Capability. .. Excellent Surge and 12 t Ratings Providing Easy Fusing. .. Guaranteed Maximum Tum-Off Time with Selections Available. .. Rugged Hermetic Package with Long Creepage Path. MAXIMUM ALLOWABLE RATINGS TYPES REPETITIVE PEAK OFF-STATE VOLTAGE, VDRMI TJ = -40°C to +125°C C184/C185A C184/C185B C184/C185C C184/C185D C184/C185E C184/C185M C185S C185N 100 Volts 200 300 400 500 600 700 800 1 Half sinewave waveform, 10 ms max. pulse width.
