32SEPF68M, 32SEPF22M - Conductive Polymer Aluminum Solid Capacitors

Name: 32SEPF68M
SKU: 32SEPF68M-1594291

Panasonic

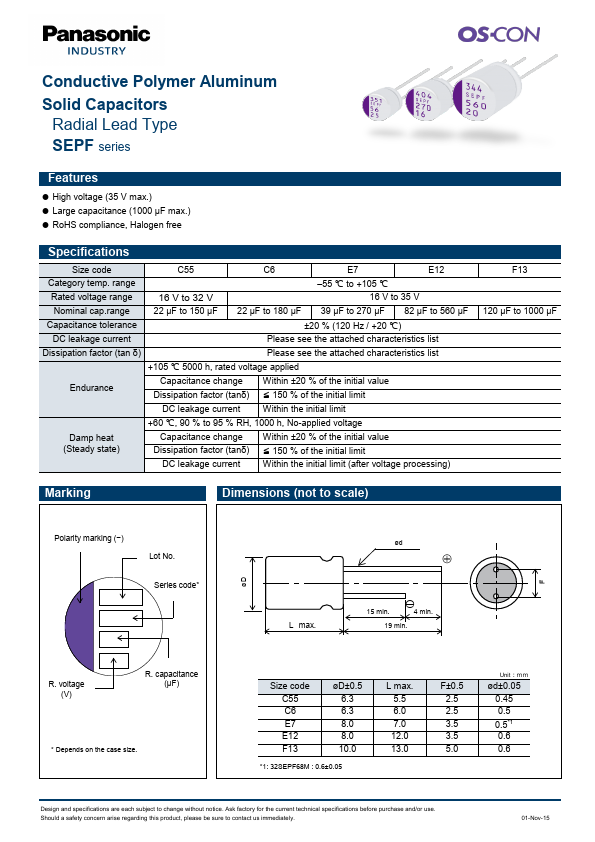

The 32SEPF68M by Panasonic is a Conductive Polymer Aluminum Solid Capacitors. Below is the official datasheet preview.

Datasheet Details

Part number	32SEPF68M, 32SEPF22M
Manufacturer	Panasonic
File Size	644.38 KB
Description	Conductive Polymer Aluminum Solid Capacitors
Datasheet	32SEPF22M-Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: 32SEPF68M, 32SEPF22M. Please refer to the document for exact specifications by model.

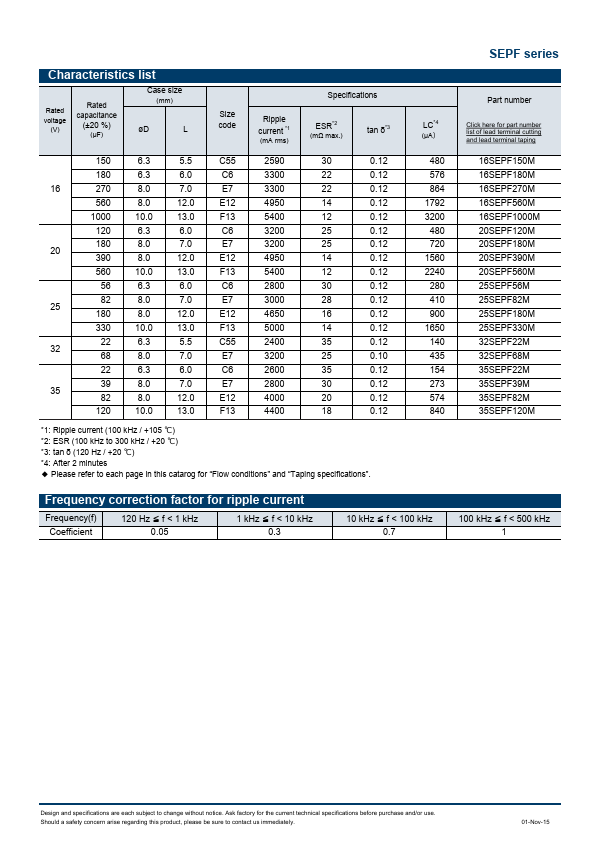

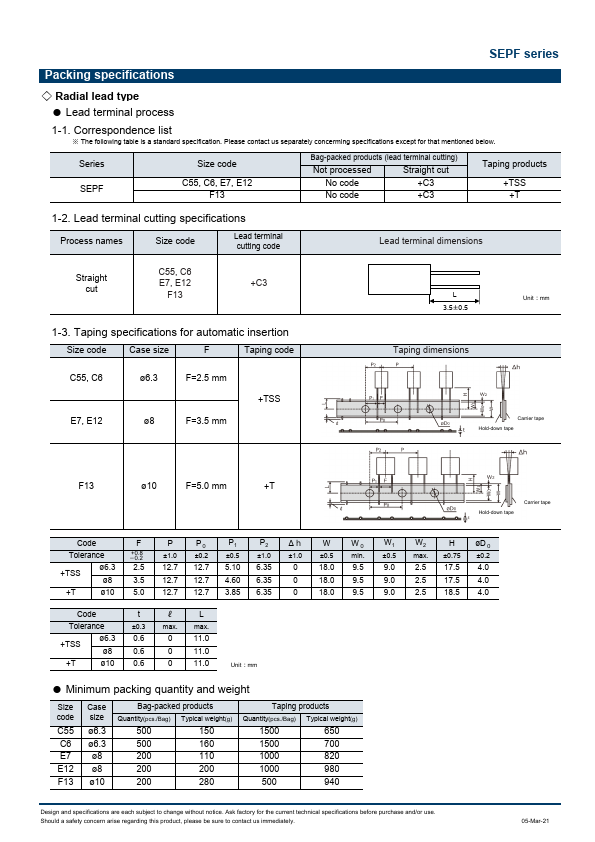

Additional preview pages of the 32SEPF68M datasheet.

High voltage (35 V max. ).
Large capacitance (1000 μF max. ).
RoHS compliance, Halogen free Specifications Size code C55 C6 E7 E12 Category temp. range.
55 ℃ to +105 ℃ Rated voltage range 16 V to 32 V 16 V to 35 V Nominal cap. range 22 μF to 150 μF 22 μF to 180 μF 39 μF to 270 μF 82 μF to 560 μF Capacitance tolerance ±20 % (120 Hz / +20 ℃) DC leakage current Please see the attached characteristics list Dissipation factor (tan δ) Please see the attached cha.
