Name: 32SEPF22M
SKU: 32SEPF22M-1594290

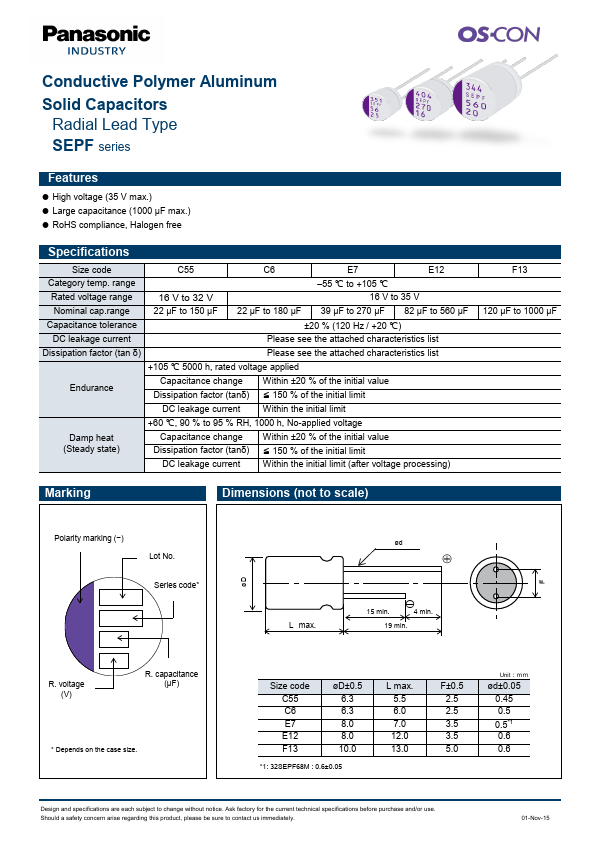

The 32SEPF22M by Panasonic is a Conductive Polymer Aluminum Solid Capacitors. Below is the official datasheet preview.

Datasheet Details

Part number	32SEPF22M
Manufacturer	Panasonic
File Size	644.38 KB
Description	Conductive Polymer Aluminum Solid Capacitors
Datasheet	32SEPF22M-Panasonic.pdf

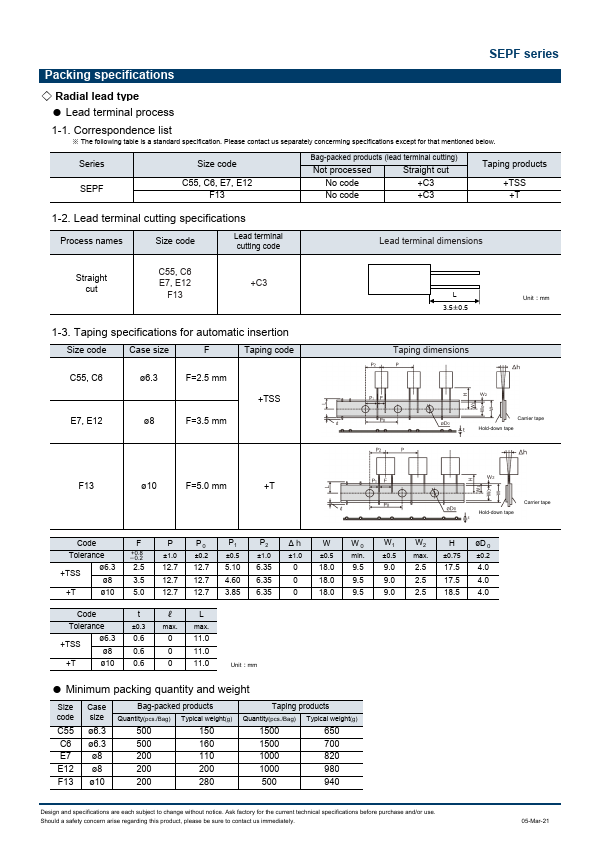

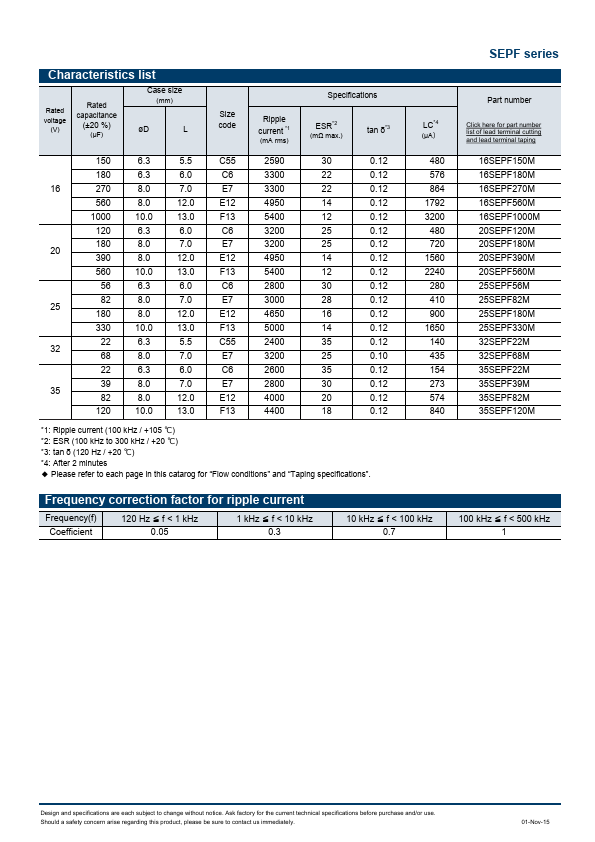

Additional preview pages of the 32SEPF22M datasheet.

32SEPF22M Product details

High voltage (35 V max. ).
Large capacitance (1000 μF max. ).
RoHS compliance, Halogen free Specifications Size code C55 C6 E7 E12 Category temp. range.
55 ℃ to +105 ℃ Rated voltage range 16 V to 32 V 16 V to 35 V Nominal cap. range 22 μF to 150 μF 22 μF to 180 μF 39 μF to 270 μF 82 μF to 560 μF Capacitance tolerance ±20 % (120 Hz / +20 ℃) DC leakage current Please see the attached characteristics list Dissipation factor (tan δ) Please see the attached cha.
