2SA0720A - Silicon PNP Transistor

Panasonic

📥 Download Datasheet

2SA0720A Datasheet Preview — Preview of 2SA0720A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SA0720A
Manufacturer	Panasonic
File Size	60.80 KB
Description	Silicon PNP Transistor
Datasheet	2SA0720A-Panasonic.pdf

2SA0720A Product details

Features

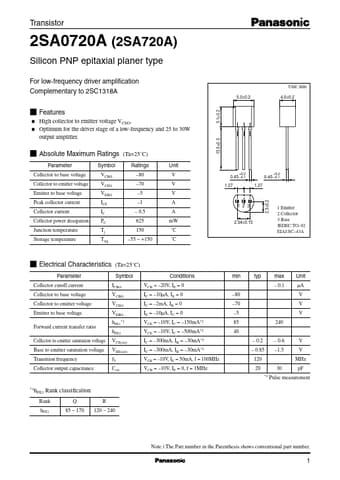

G High collector to emitter voltage VCEO. G Optimum for the driver stage of a low-frequency and 25 to 30W output amplifier. I Absolute Maximum Ratings (Ta=25˚C) Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO ICP IC PC Tj Tstg Ratings.
80.
70.
5.
1.
0.5 625 150.
55 ~ +150.
