2SA0720 - Silicon PNP Transistor

Panasonic

📥 Download Datasheet

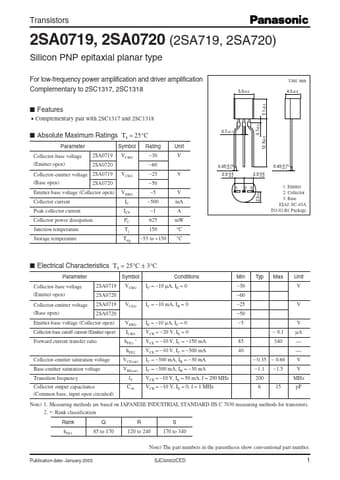

2SA0720 Datasheet Preview — Preview of 2SA0720 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SA0720
Manufacturer	Panasonic
File Size	77.04 KB
Description	Silicon PNP Transistor
Datasheet	2SA0720-Panasonic.pdf

2SA0720 Product details

Features

s.
Complementary pair with 2SC1317 and 2SC1318.
Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Collector-base voltage (Emitter open) 2SA0719 2SA0720 VCBO.
30.
60 Collector-emitter voltage 2SA0719 VCEO (Base open) 2SA0720.
25.
50 Emitter-base voltage (Collector open) Collector current Peak collector current Collector power dissipation Junction temperature Storage temperature VEBO IC ICP PC Tj Tstg.
5.
500.
