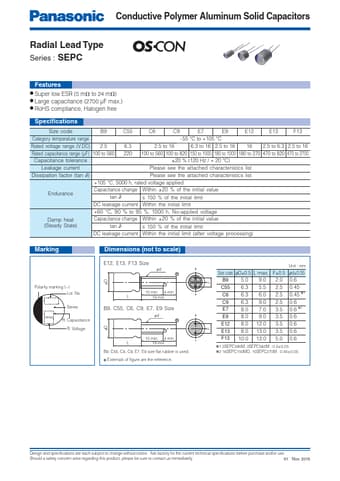

16SEPC180MX, 16SEPC100M - Conductive Polymer Aluminum Solid Capacitors

Panasonic

Datasheet Details

Part number	16SEPC180MX, 16SEPC100M
Manufacturer	Panasonic
File Size	47.02 KB
Description	Conductive Polymer Aluminum Solid Capacitors
Datasheet	16SEPC100M-Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: 16SEPC180MX, 16SEPC100M. Please refer to the document for exact specifications by model.

Super low ESR (5 mΩ to 24 mΩ).
Large capacitance (2700 μF max. ).
RoHS compliance, Halogen free Specifications Size code B9 C55 C6 C9 E7 E9 E12 E13 F13 Category temperature range.
55 °C to +105 °C Rated voltage range (V. DC) 2.5 6.3 2.5 to 16 6.3 to 16 2.5 to 16 16 2.5 to 6.3 2.5 to 16 Rated capacitance range (μF) 100 to 560 220 100 to 560 100 to 820 150 to 1000 180 to 1000 180 to 270 470 to 820 470 to 2700 Capacitance tolerance ±20 % (120 Hz / + 20 °C) Leakage.
