Download the 16SEPC180M datasheet PDF.
This datasheet also covers the 16SEPC100M variant, as both devices belong to the same conductive polymer aluminum solid capacitors family and are provided as variant models within a single manufacturer datasheet.
Features
- Super low ESR (5 mΩ to 24 mΩ).
- Large capacitance (2700 μF max. ).
- RoHS compliance, Halogen free
Specifications
Size code
B9 C55 C6 C9 E7 E9 E12 E13 F13
Category temperature range.
- 55 °C to +105 °C
Rated voltage range (V. DC) 2.5
6.3
2.5 to 16
6.3 to 16 2.5 to 16 16 2.5 to 6.3 2.5 to 16
Rated capacitance range (μF) 100 to 560 220 100 to 560 100 to 820 150 to 1000 180 to 1000 180 to 270 470 to 820 470 to 2700
Capacitance tolerance
±20 % (120 Hz / + 20 °C)
Leakage.

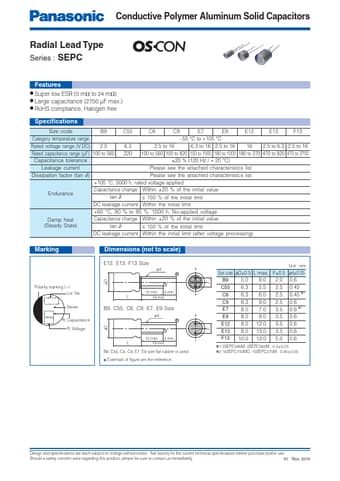

16SEPC180M Datasheet
