MSG43001 - Transistor

Product Overview

Panasonic Semiconductor

📥 Download Datasheet

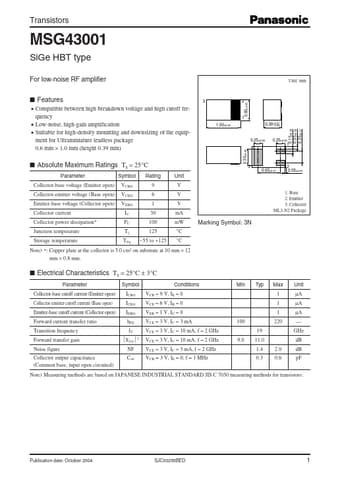

MSG43001 Transistor by Panasonic Semiconductor - Datasheet Preview — Datasheet preview – MSG43001

Datasheet Details

Part number	MSG43001
Manufacturer	Panasonic Semiconductor
File Size	94.77 KB
Description	Transistor
Datasheet	MSG43001 Datasheet
Additional preview pages of the MSG43001 datasheet.

Product details

Features

s.
Compatible between high breakdown voltage and high cutoff frequency.
Low-noise, high-gain amplification.
Suitable for high-density mounting and downsizing of the equipment for Ultraminiature leadless package 0.6 mm × 1.0 mm (height 0.39 mm) Unit: mm 1 1.00±0.05 0.60±0.05 3 2 0.39+0.01.
0.03 0.15±0.05 0.05±0.03 0.35±0.01 0.25±0.05 0.50±0.05 0.25±0.05 1.
Absolute Maximum Ratings Ta = 25°C Parameter Collector-base voltage (Emitter open) Collector-e.
