2SD1511 - Silicon NPN Transistor

Panasonic Semiconductor

Datasheet Details

Part number	2SD1511
Manufacturer	Panasonic Semiconductor
File Size	52.60 KB
Description	Silicon NPN Transistor
Datasheet	2SD1511_PanasonicSemiconductor.pdf

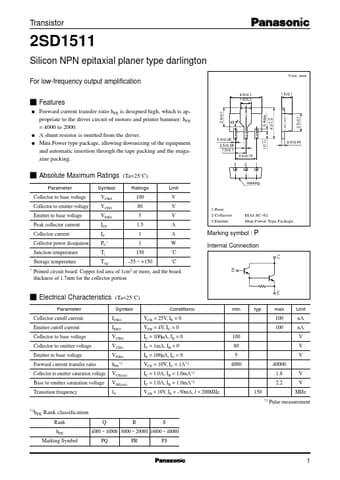

Forward current transfer ratio hFE is designed high, which is appropriate to the driver circuit of motors and printer bammer: hFE = 4000 to 2000. A shunt resistor is omitted from the driver. Mini Power type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing. (Ta=25˚C) 2.6±0.1 45° 4.5±0.1 1.6±0.2 1.5±0.1 0.4max. q q 1.0.
0.2 +0.1 0.4±0.08 0.5±0.08 1.5±0.1 3.0±0.15 3 2 1 4.0.
0.20 0.4±0.04 s Absolute Maxim.
