UR18650ZY - Lithium Ion

Name: UR18650ZY
SKU: UR18650ZY-831737

Panasonic Battery

The UR18650ZY by Panasonic Battery is a Lithium Ion. Below is the official datasheet preview.

Datasheet Details

Part number	UR18650ZY
Manufacturer	Panasonic Battery
File Size	516.30 KB
Description	Lithium Ion
Datasheet	UR18650ZY-PanasonicBattery.pdf

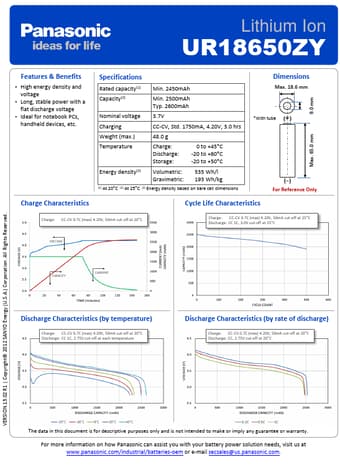

Additional preview pages of the UR18650ZY datasheet.

& Benefits.
High energy density and voltage.
Long, stable power with a flat discharge voltage.
Ideal for notebook PCs, handheld devices, etc. Lithium Ion Dimensions Specifications Rated capacity(1) Capacity(2) Nominal voltage Charging Weight (max. ) Temperature Min. 2450mAh Min. 2500mAh Typ. 2600mAh 3.7V CC-CV, Std. 1750mA, 4.20V, 3.0 hrs Charge: Discharge: Storage: Volumetric: Gravimetric: (3) Energy Max. 18.6 mm 9.0 mm Max. 65.0 mm (.
) For Reference Only.
