UR18500F - Lithium Ion

Name: UR18500F
SKU: UR18500F-831725

Panasonic Battery

The UR18500F by Panasonic Battery is a Lithium Ion. Below is the official datasheet preview.

Datasheet Details

Part number	UR18500F
Manufacturer	Panasonic Battery
File Size	530.97 KB
Description	Lithium Ion
Datasheet	UR18500F-PanasonicBattery.pdf

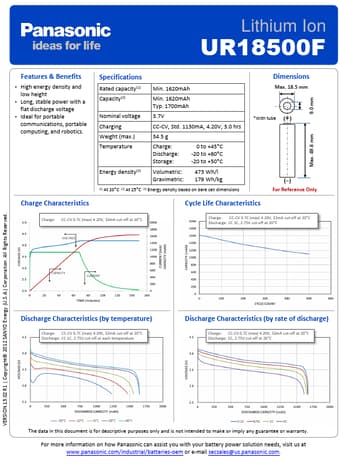

Additional preview pages of the UR18500F datasheet.

& Benefits.
High energy density and low height.
Long, stable power with a flat discharge voltage.
Ideal for portable communications, portable computing, and robotics. Lithium Ion Dimensions Specifications Rated capacity(1) Capacity(2) Nominal voltage Charging Weight (max. ) Temperature Min. 1620mAh Min. 1620mAh Typ. 1700mAh 3.7V CC-CV, Std. 1130mA, 4.20V, 3.0 hrs Charge: Discharge: Storage: Volumetric: Gravimetric: (3) Energy Max. 18.5 mm 9.0 mm Max. 49.6 mm (.
