SB3050ST, SB3020ST SCHOTTKY BARRIER RECTIFIERS

SB3050ST Description

SB3020ST SERIES SCHOTTKY BARRIER RECTIFIERS 20 to 60 Volts CURRENT VOLTAGE .

SB3050ST Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O. Flame Retardant Epoxy Molding Compound.
* Exceeds environmental standards of 0.516(13.20) 0.504(12.80) 30 Amperes 0.615(15.60)MAX. 0.520(13.20) 0.504(12.80) 0.402(10.20) 0.385(9.80) 0.185(4.70) 0.169(4

SB3050ST Applications

* In compliance with EU RoHS 2002/95/EC directives 0.118(3.0) MIN. 0.599(15.20) 0.582(14.80) 0.577(14.65) 0.565(14.35) 0.776(19.70) 0.759(19.30) 0.732(18.58) 0.715(18.18) MECHANICAL DATA
* Case: TO-247S/TO-3PS Molded plastic
* Terminals: Solder plated, solderable per MIL

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB3050ST, SB3020ST. Please refer to the document for exact specifications by model.

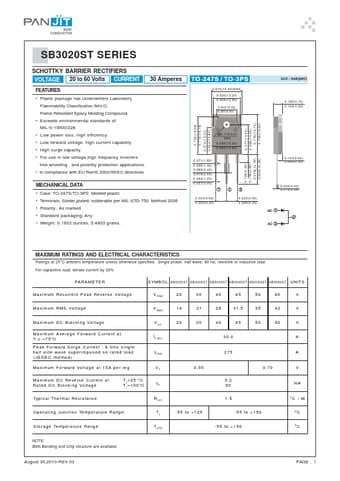

datasheet Preview Page 2

Datasheet Details

Part number
SB3050ST, SB3020ST
Manufacturer
Pan Jit
File Size
48.01 KB
Datasheet
SB3020ST-PanJit.pdf
Description
SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SB3050ST, SB3020ST.
Please refer to the document for exact specifications by model.
