SB3050FCT, SB3020FCT SCHOTTKY BARRIER RECTIFIER

SB3050FCT Description

SB3020FCT thru SB30150FCT SCHOTTKY BARRIER RECTIFIER VOLTAGE - 20 TO 150 VOLTS CURRENT - 30 AMPERES ITO-220AB .

SB3050FCT Features

* Plastic Package has Underwriters Laboratory Flammability Classification 94-0 utilizing Flame Retardant Epoxy Molding Compound Exceeds environmental standards of MIL-S-19500/228 Low power loss, gigh efficiency Low Forward Voltage, high Current Capability High surge Capability For use low Voltage, hig

SB3050FCT Applications

* High temperature soldering 260oC/10seconds at terminals Pb free product are available 99% Sn above can meet RoHS Environment substance directive request MECHANICAL DATA Case ITO220AB Molded plastic Terminals Lead solderable per MIL-STD-202, Method 208 Polarity As Marked on Body Mounting Position An

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB3050FCT, SB3020FCT. Please refer to the document for exact specifications by model.

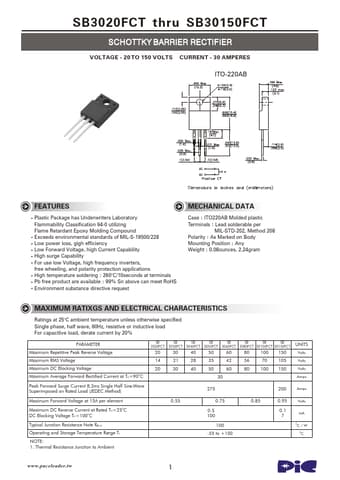

datasheet Preview Page 2

Datasheet Details

Part number
SB3050FCT, SB3020FCT
Manufacturer
PACELEADER
File Size
156.93 KB
Datasheet
SB3020FCT-PACELEADER.pdf
Description
SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SB3050FCT, SB3020FCT.
Please refer to the document for exact specifications by model.
