SS10150HE-AU, SS1040HE-AU SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

SS10150HE-AU Description

SS1040HE-AU SERIES SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE 40-150Volt CURRENT 1 Ampere .

SS10150HE-AU Features

* Fast switching speed
* Surface mount package ideally suited for automatic insertion
* Electrical identical standard JEDEC.
* High conductor
* Acquire quality system certificate : TS16949
* AEC-Q101 qualified
* Lead free in compliance with EU

SS10150HE-AU Applications

* shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS10150HE-AU, SS1040HE-AU. Please refer to the document for exact specifications by model.

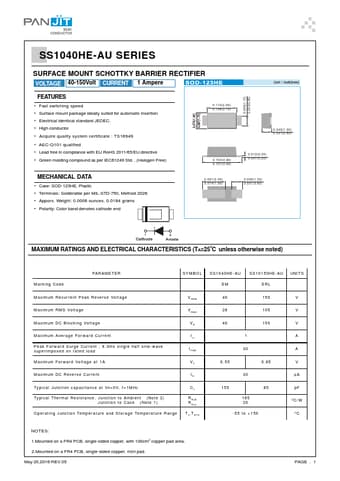

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS10150HE-AU, SS1040HE-AU
Manufacturer
Pan Jit International
File Size
258.59 KB
Datasheet
SS1040HE-AU-PanJitInternational.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SS10150HE-AU, SS1040HE-AU.
Please refer to the document for exact specifications by model.
