SS10200HE, SS1040HE SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

SS10200HE Description

SS1040HE SERIES SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE 40-200Volt CURRENT 1 Ampere .

SS10200HE Features

* Fast switching speed
* Surface mount package ideally suited for automatic insertion
* Electrical identical standard JEDEC.
* High conductor
* Lead free in compliance with EU RoHS 2011/65/EU directive
* Green molding compound as per IEC61249 Std. . (H

SS10200HE Applications

* shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS10200HE, SS1040HE. Please refer to the document for exact specifications by model.

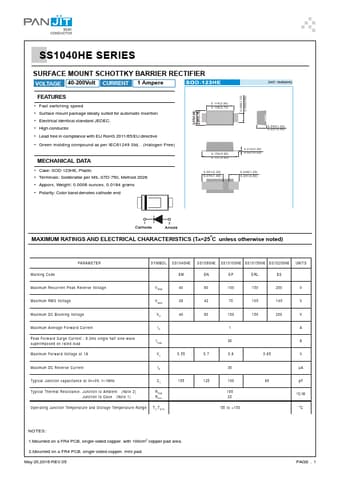

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS10200HE, SS1040HE
Manufacturer
Pan Jit International
File Size
311.95 KB
Datasheet
SS1040HE-PanJitInternational.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SS10200HE, SS1040HE.
Please refer to the document for exact specifications by model.
