RB751S40X - SURFACE MOUNT SCHOTTKY DIODES

Key Features

  • Extremely Fast Switching Speed.
  • Surface mount package ideally suited for autmatic insertion.
  • Lead free in comply with EU RoHS 2011/65/EU directives.
  • Green molding compound as per IEC61249 Std. . (Halogen Free).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
RB751S40 Schottky Barrier Diode ON Semiconductor
RB751S40 Schottky barrier single diodes NXP
RB751S40 Schottky Barrier Diodes Fairchild Semiconductor
RB751S 30mA Surface Mount Small Signal Diodes CITC
RB751S-40 Schottky barrier Diodes Transys

Other Datasheets by PanJit Semiconductor

Part Number Description
RB751S40 SURFACE MOUNT SCHOTTKY DIODES
RB751S40-AU SURFACE MOUNT SCHOTTKY DIODES
RB751S-40 SURFACE MOUNT SCHOTTKY DIODES
RB751G-40 SURFACE MOUNT SCHOTTKY DIODES
RB751V-40 SURFACE MOUNT SCHOTTKY DIODES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

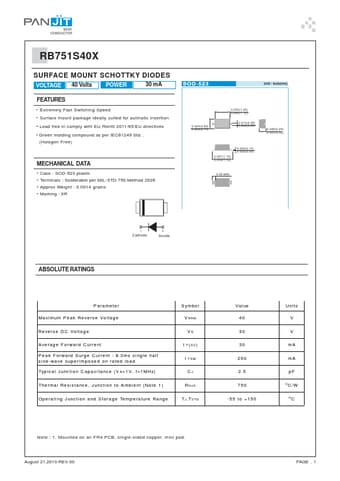

RB751S40X SURFACE MOUNT SCHOTTKY DIODES VOLTAGE 40 Volts POWER 30 mA FEATURES • Extremely Fast Switching Speed • Surface mount package ideally suited for autmatic insertion • Lead free in comply with EU RoHS 2011/65/EU directives • Green molding compound as per IEC61249 Std. . (Halogen Free) MECHANICAL DATA • Case : SOD-523 plastic • Terminals : Solderable per MIL-STD-750,Method 2026 • Approx Weight : 0.0014 grams • Marking : XR 0.034(0.85) 0.029(0.75) 0.050(1.25) 0.045(1.15) 0.014(0.35) 0.009(0.25) 0.026(0.65) 0.021(0.55) 0.067(1.70) 0.059(1.50) 0.006(0.15) 0.002(0.05) 0.20 MIN. ABSOLUTE RATINGS 1 Cathode 2 Anode Parameter Maximum Peak Reverse Voltage Reverse DC Voltage Average Forward Current Peak Forward Surge Current : 8.
