RB751V-40 - SURFACE MOUNT SCHOTTKY DIODES

Datasheet Summary

Features

  • Extremely Fast Switching Speed.
  • Very Low VF : 0.325V (Typ) at IF = 1mA.
  • Surface mount package ideally suited for autmatic insertion.
  • Pb free product are available : 99% Sn above can meet RoHS environment substance directive request.

📥 Download Datasheet

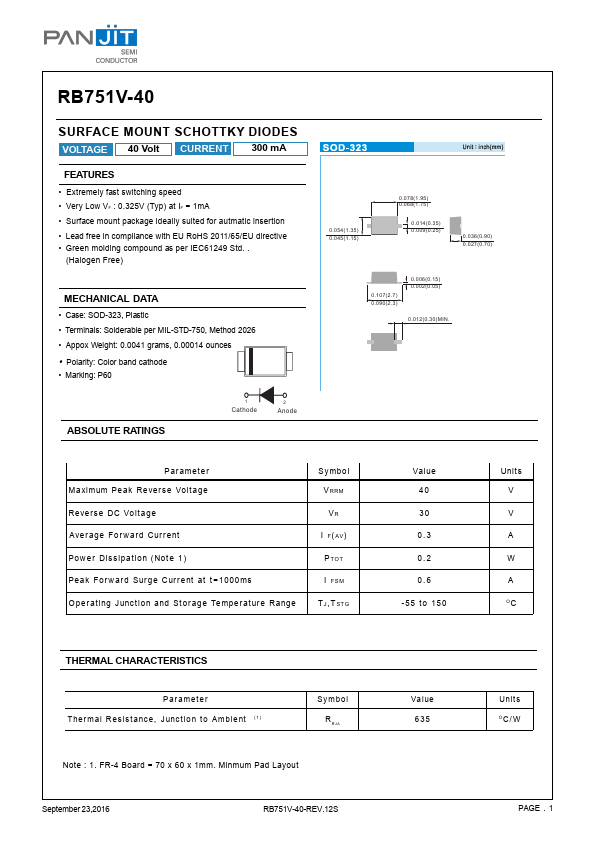

Datasheet preview – RB751V-40

Datasheet Details

Part number RB751V-40
Manufacturer Pan Jit International
File Size 65.55 KB
Description SURFACE MOUNT SCHOTTKY DIODES
Datasheet download datasheet RB751V-40 Datasheet

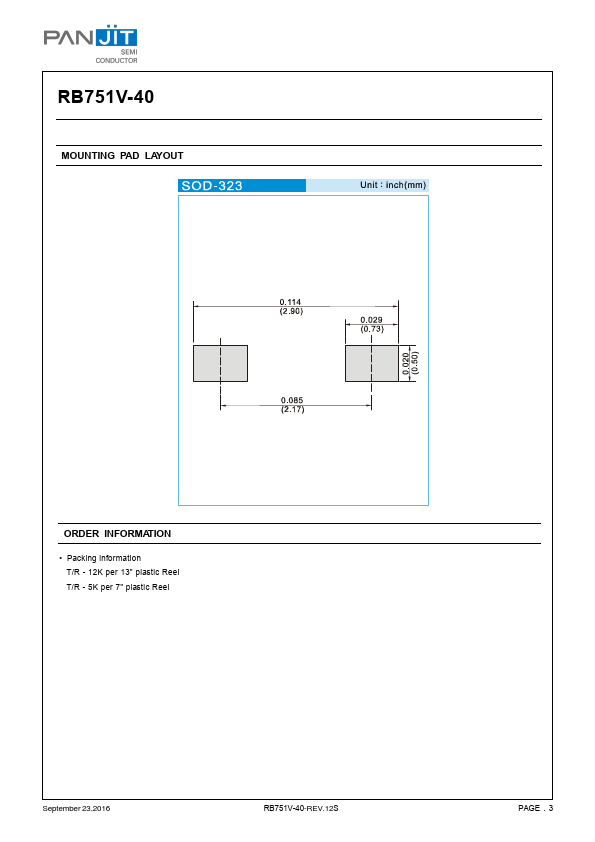

Additional preview pages of the RB751V-40 datasheet.

📁 Similar Datasheet

  • RB751V-40 - Silicon Epitaxial Planar Schottky Barrier Diode (JGD)
  • RB751V-40 - Schottky barrier diode (Rohm)
  • RB751V-40 - SMD Schottky Barrier Diodes (Comchip)
  • RB751V-40 - SURFACE MOUNT SCHOTTKY BARRIER DIODE (WON-TOP)
  • RB751V-40 - Schottky Barrier Diode (MCC)
  • RB751V-40 - SURFACE MOUNT SCHOTTKY BARRIER DIODE (LITE-ON)
  • RB751V-40 - 0.03AMP Surface Mount Schottky Barrier Diode (Taiwan Semiconductor)
  • RB751V-40 - Schottky Diodes (TRANSYS)
  • RB751V-40 - Schottky Barrier Diode (BILIN)
  • RB751V-40 - Schottky barrier diode (Kexin)
Other Datasheets by Pan Jit International
  • RB751G-40 - SURFACE MOUNT SCHOTTKY DIODES
  • RB751S-40 - SURFACE MOUNT SCHOTTKY DIODES
  • RB751S40 - SURFACE MOUNT SCHOTTKY DIODES
  • RB751S40-AU - SURFACE MOUNT SCHOTTKY DIODES
  • RB751S40X - SURFACE MOUNT SCHOTTKY DIODES
  • RB731U - SURFACE MOUNT TRIPLE SCHOTTKY DIODES
  • RB731UTW - SURFACE MOUNT TRIPLE SCHOTTKY DIODES

Full PDF Text Transcription

Click to expand full text
RB751V-40 SURFACE MOUNT SCHOTTKY DIODES VOLTAGE 40 Volts CURRENT 200 mA FEATURES • Extremely Fast Switching Speed • Very Low VF : 0.325V (Typ) at IF = 1mA • Surface mount package ideally suited for autmatic insertion • Pb free product are available : 99% Sn above can meet RoHS environment substance directive request MECHANICAL DATA Case: SOD-323, Plastic Terminals: Solderable per MIL-STD-750, Method 2026 Appox Weight : 0.008 gram Marking : P60 SOD-323 .078(1.95) .068(1.75) Unit: inch (mm) .014(.35) .009(.25) .054(1.35) .045(1.15) .038(.95) .027(.70) .006(.15) .002(.05) .107(2.7) .090(2.3) .012(.30)MIN.
