PJF2N70 - 700V N-Channel Enhancement Mode MOSFET

Pan Jit International

📥 Download Datasheet

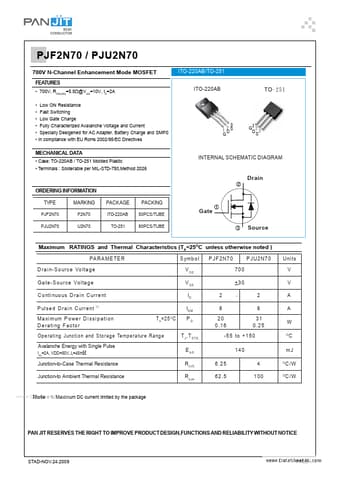

PJF2N70 Datasheet Preview — Preview of PJF2N70 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PJF2N70
Manufacturer	Pan Jit International
File Size	315.09 KB
Description	700V N-Channel Enhancement Mode MOSFET
Datasheet	PJF2N70_PanJitInternational.pdf

PJF2N70 Product details

Features

700V, RDS(ON)=5.5Ω@VGS=10V, ID=2A.
Low ON Resistance.
Fast Switching.
Low Gate Charge.
Fully Characterized Avalanche Voltage and Current.
Specially Desigened for AC Adapter, Battery Charge and SMPS.
In compliance with EU RoHs 2002/95/EC Directives ITO-220AB/TO-251 ITO-220AB TO -251 2 1 DS G G 2 D 3 S.
