PJF2N60 - 600V N-Channel Enhancement Mode MOSFET

Pan Jit International

📥 Download Datasheet

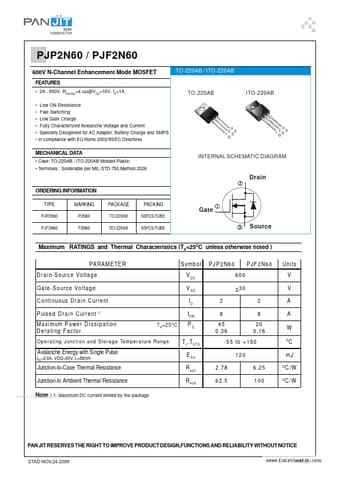

PJF2N60 Datasheet Preview — Preview of PJF2N60 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PJF2N60
Manufacturer	Pan Jit International
File Size	228.94 KB
Description	600V N-Channel Enhancement Mode MOSFET
Datasheet	PJF2N60_PanJitInternational.pdf

PJF2N60 Product details

Features

2A , 600V, RDS(ON)=4.6Ω@VGS=10V, ID=1A.
Low ON Resistance.
Fast Switching.
Low Gate Charge.
Fully Characterized Avalanche Voltage and Current.
Specially Desigened for AC Adapter, Battery Charge and SMPS.
In compliance with EU RoHs 2002/95/EC Directives TO-220AB / ITO-220AB TO-220AB ITO-220AB 1 2 G 3 D S 1 2 G 3 S D.
