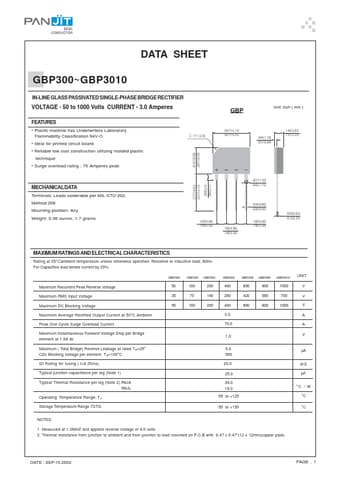

GBP3010 - IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

Pan Jit International Inc.

Datasheet Details

Part number	GBP3010
Manufacturer	Pan Jit International Inc.
File Size	40.12 KB
Description	IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
Datasheet	GBP3010_PanJitInternationalInc..pdf

Plastic material has Underwriters Laboratory Flammability Classification 94V-O.
Ideal for printed circuit board technique.
Surge overload rating : 70 Amperes peak .414(10.50) .397(10.10) C .111 (2.8) GBP .581(14.75) .561(14.25) Unit: inch ( mm ) .044(1.10) .031(0.80) .144(3.65) .131(3.35).
Reliable low cost construction utilizing molded plastic .577(14.65) .557(14.15).
