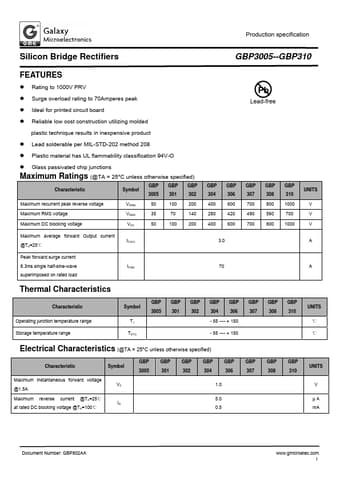

GBP3005 - Silicon Bridge Rectifiers

Datasheet Details

z Rating to 1000V PRV z Surge overload rating to 70Amperes peak z Ideal for printed circuit board z Reliable low cost construction utilizing molded plastic technique results in inexpensive product z Lead solderable per MIL-STD-202 method 208 z Plastic material has UL flammability classification 94V-O z Glass passivated chip junctions Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol GBP 3005 GBP 301 GBP 302 Maximum recurrent peak reverse voltage VRRM 50 1.
