PT12482 - 36V/3.6A Brushed DC Motor Driver

PTC

📥 Download Datasheet

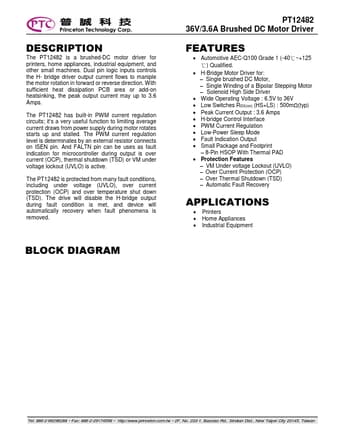

PT12482 Datasheet Preview — Preview of PT12482 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PT12482
Manufacturer	PTC
File Size	475.09 KB
Description	36V/3.6A Brushed DC Motor Driver
Datasheet	PT12482-PTC.pdf

PT12482 Product details

Description

The PT12482 is a brushed-DC motor driver for printers, home appliances, industrial equipment, and other small machines.

Features

Automotive AEC-Q100 Grade 1 (-40℃~+125 ℃) Qualified.
H-Bridge Motor Driver for:.
Single brushed DC Motor,.
Single Winding of a Bipolar Stepping Motor.
Solenoid High Side Driver.
Wide Operating Voltage : 6.5V to 36V.
Low Switches RDS(on) (HS+LS) : 500mΩ(typ).
Peak Current Output : 3.6 Amps.
H-bridge Control Interface.
PWM Current Regulation.
Low-Power Sleep Mode.
Fault Indication Output.
Small Package and Footprint.
