PT124B - Melt Pressure Transmitter

Download the PT124B datasheet PDF. This datasheet also covers the PT111B variant, as both devices belong to the same melt pressure transmitter family and are provided as variant models within a single manufacturer datasheet.

Description

This Series transmitter is a +/- 1.0% sensor ideal for general melt pressure measurements requiring simple installation, repeatability and reliability.

The transmitters provide the industry standard 4 - 20 mA amplified signal designed to work with DCS and PLCs.

Features

  • Adjustable zero and span ISO9001:2008 Accuracy better than±1.0% Stainless steal sealed 80% shunt calibration Good stability and repeatability 5PIN connector.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PT111B-HAOYING.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number PT124B
Manufacturer HAOYING
File Size 1.23 MB
Description Melt Pressure Transmitter
Datasheet download datasheet PT124B Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PT124B-111 Economic melt pressure transmitter ZHYQ
PT124B-111 (Chinese) Melt Pressure Transmitters ZHYQ
PT124B-111T Economic melt pressure transmitter ZHYQ
PT124B-111T Melt Pressure Transmitters (CH) ZHYQ
PT124B-112 Melt Pressure Transmitter ZHYQ

Other Datasheets by HAOYING

Part Number Description
PT124 Melt Pressure Transducer
PT123 Standard Series Melt Pressure Transduc
PT123B Melt Pressure Transmitter
PT111 Melt Pressure Transducer
PT111B Melt Pressure Transmitter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

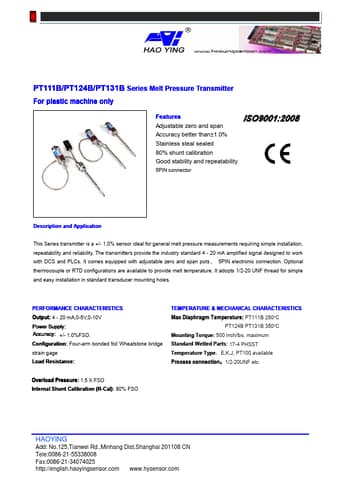

PT111B/PT124B/PT131B Series Melt Pressure Transmitter For plastic machine only Features Adjustable zero and span ISO9001:2008 Accuracy better than±1.0% Stainless steal sealed 80% shunt calibration Good stability and repeatability 5PIN connector Description and Application This Series transmitter is a +/- 1.0% sensor ideal for general melt pressure measurements requiring simple installation, repeatability and reliability. The transmitters provide the industry standard 4 - 20 mA amplified signal designed to work with DCS and PLCs. It comes equipped with adjustable zero and span pots， 5PIN electronic connection. Optional thermocouple or RTD configurations are available to provide melt temperature.
