GBPC35005W, GBPC35005W-PAN HIGH CURRENT SILICON BRIDGE RECTIFIER

GBPC35005W Description

DATA SHEET GBPC35005W~GBPC3510W HIGH CURRENT SILICON BRIDGE RECTIFIER VOLTAGE - 50 to 1000 Volts CURRENT - 35 Amperes .

GBPC35005W Features

* Plastic material has Underwriters Laboratory Flammability Classification 94V-O
* The plastic package has Underwriters Laboratory Flammability Classification 94V-O.
* Surge overload ratings to 400 Amperes . MECHANICALDATA Case:Molded plastic with heatsink integrally mounthed

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GBPC35005W, GBPC35005W-PAN. Please refer to the document for exact specifications by model.

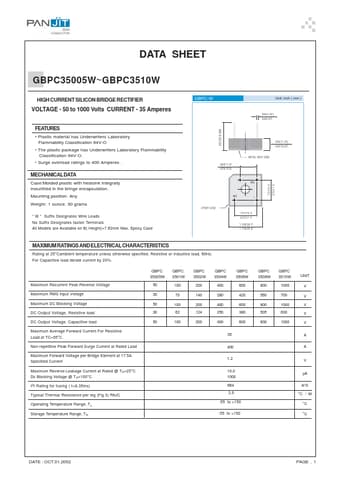

datasheet Preview Page 2

Datasheet Details

Part number
GBPC35005W, GBPC35005W-PAN
Manufacturer
PAN-JIT
File Size
33.47 KB
Datasheet
GBPC35005W-PAN-JIT.pdf
Description
HIGH CURRENT SILICON BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: GBPC35005W, GBPC35005W-PAN.
Please refer to the document for exact specifications by model.
