GBPC35005-G - Glass Passivated Bridge Rectifiers

Download the GBPC35005-G datasheet PDF. This datasheet also covers the GBPC15005-G variant, as both devices belong to the same glass passivated bridge rectifiers family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • -Surge overload-300~450 Amperes peak -Low forward voltage drop -Electrically isolated base -2000 Volts -Materials used carries U/L recognition G 0.94 (2.4) diam.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GBPC15005-G-Comchip.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number GBPC35005-G
Manufacturer Comchip
File Size 66.30 KB
Description Glass Passivated Bridge Rectifiers
Datasheet download datasheet GBPC35005-G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GBPC35005 Glass Passivated Single-Phase Bridge Rectifier Vishay
GBPC35005 35A GLASS PASSIVATED BRIDGE RECTIFIER Diodes
GBPC35005 HIGH CURRENT SILICON BRIDGE RECTIFIER PAN-JIT
GBPC35005 Single-Phase 35.0A Glass Passivated Bridge Rectifier Sangdest Microelectronics
GBPC35005 Bridge Rectifier Multicomp

Other Datasheets by Comchip

Part Number Description
GBPC3501-G Glass Passivated Bridge Rectifiers
GBPC3502-G Glass Passivated Bridge Rectifiers
GBPC3504-G Glass Passivated Bridge Rectifiers
GBPC3506-G Glass Passivated Bridge Rectifiers
GBPC3508-G Glass Passivated Bridge Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

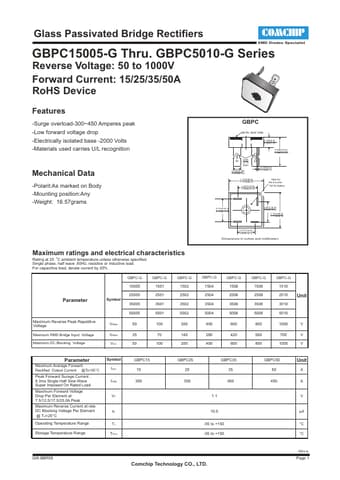

Glass Passivated Bridge Rectifiers Reverse Voltage: 50 to 1000V Forward Current: 15/25/35/50A RoHS Device Features -Surge overload-300~450 Amperes peak -Low forward voltage drop -Electrically isolated base -2000 Volts -Materials used carries U/L recognition G 0.94 (2.4) diam COMCHIP SMD Diodes Specialist GBPC15005-G Thru. GBPC5010-G Series GBPC METAL HEAT SINK 0.335(8.5) 0.295(7.5) 0.925(23.5) 0.886(22.5) G 0.035(0.9) 0.028(0.7) Mechanical Data -Polarit:As marked on Body -Mounting position:Any -Weight: 16.57grams 0.720(18.3) 0.705(17.9) 0.254(6.45) 0.242(6.15) 1.133(28.8) 1.114(28.3) 0.661(16.8) 0.648(16.4) Hole for No.8 screw 193"(4.9)diam 0.661(16.8) 0.648(16.4) 1.133(28.8) 1.114(28.3) 0.571(14.5) 0.555(14.
