OB6573 - 8 Pin CCM PFC Controller

Download the OB6573 datasheet PDF. This datasheet also covers the OB6573-On variant, as both devices belong to the same 8 pin ccm pfc controller family and are provided as variant models within a single manufacturer datasheet.

Description

OB6573 is a 8-pin active power factor correction (PFC) controller designed to operate in continuous conduction mode (CCM) with average current control.

265VAC) with no need to sense the line input voltage.

Features

  • 8-Pin Solution without Sensing Line Voltage.
  • Average Current Continuous Control Mode.
  • Fixed 65KHz Frequency with Frequency Shuffling for Better EMI.
  • Wide-range Universal AC Input Voltage.
  • Very Low Shutdown Currents (Typical 200uA).
  • Maximum Duty Cycle of 97%.
  • Trimmed Internal Reference.
  • Input Brown-out Protection.
  • Cycle by Cycle Over Current Limit.
  • Soft Over Current Protection.
  • Output Over Voltage Protection.
  • Open Loop Protection.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (OB6573-On-BrightElectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number OB6573
Manufacturer On-Bright
File Size 452.12 KB
Description 8 Pin CCM PFC Controller
Datasheet download datasheet OB6573 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
OB6561P High Performance PFC Controller GreenEngine
OB6563 High Performance PFC Controller GreenEngine

Other Datasheets by On-Bright

Part Number Description
OB6561PX High Performance PFC Controller
OB6563 High Performance PFC Controller
OB6566 High Performance PFC Controller
OB6683 High Performance TM PFC/QR Combo Controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

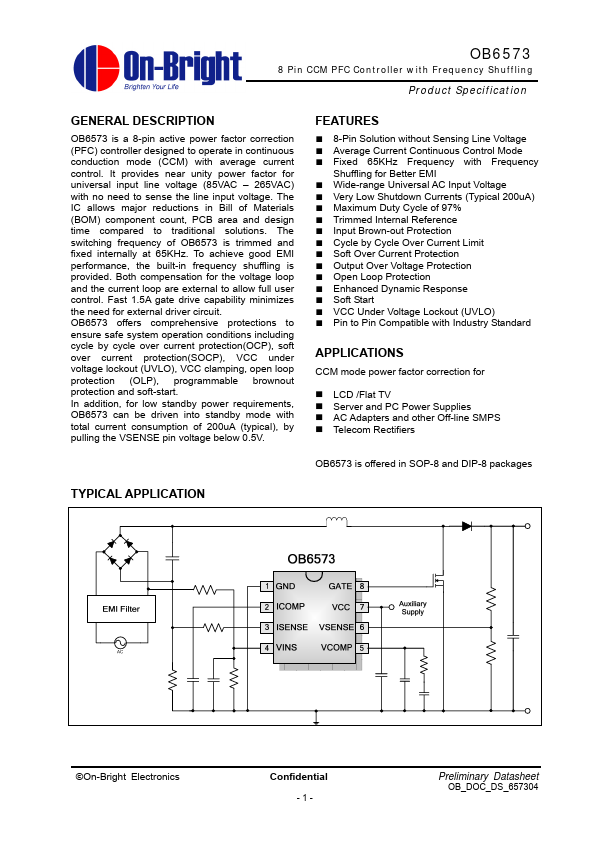

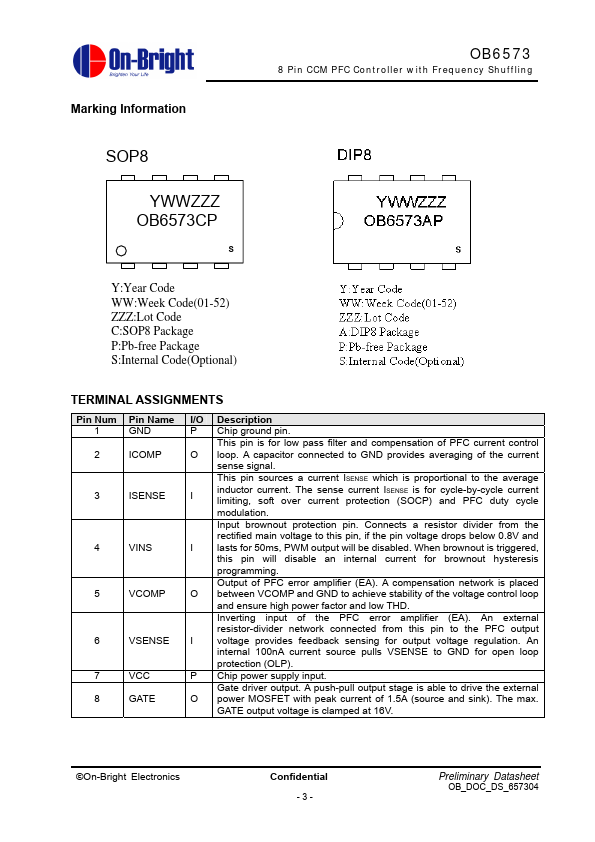

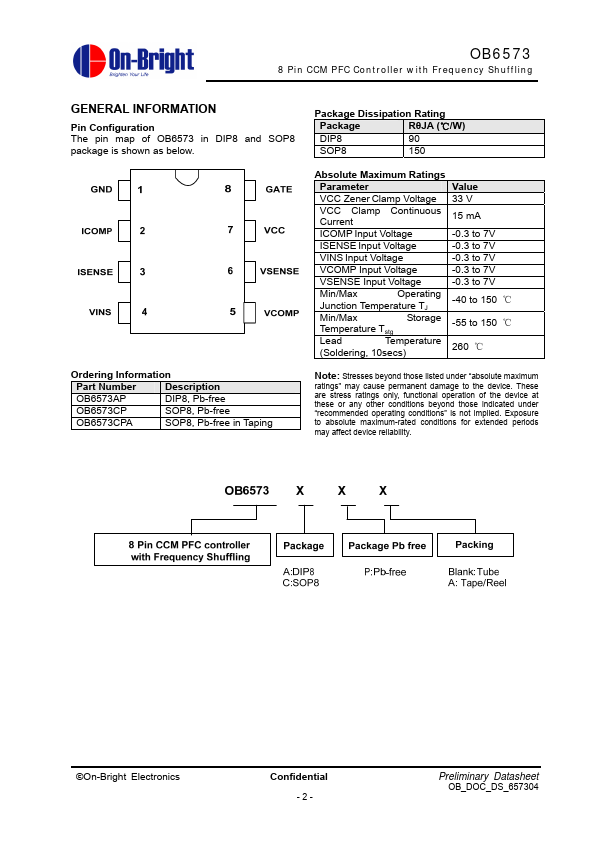

OB6573 8 Pin CCM PFC Controller with Frequency Shuffling Product Specification GENERAL DESCRIPTION OB6573 is a 8-pin active power factor correction (PFC) controller designed to operate in continuous conduction mode (CCM) with average current control. It provides near unity power factor for universal input line voltage (85VAC – 265VAC) with no need to sense the line input voltage. The IC allows major reductions in Bill of Materials (BOM) component count, PCB area and design time compared to traditional solutions. The switching frequency of OB6573 is trimmed and fixed internally at 65KHz. To achieve good EMI performance, the built-in frequency shuffling is provided. Both compensation for the voltage loop and the current loop are external to allow full user control. Fast 1.
