LS5421 Datasheet - OSRAM

LS5421 Super-Bright LED

5 mm (T1 ¾) LED, Non Diffused Super-Bright LED LS 5421, LO 5411, LY 5421, LG 5411 Nicht für Neuentwicklungen / Not for New Designs Besondere Merkmale Gehäusetyp: klares 5 mm (T1 ¾) Gehäuse, eingefärbt (super-rot und gelb), nicht eingefärbt (orange und grün) Besonderheit des Bauteils: enge Abstrahlcharakteristik Wellenlänge: 628 nm (super-rot), 606 nm (orange), 587 nm (gelb), 570 nm (grün) Abstrahlwinkel: engwinklig (20°) Technologie: GaAlP .

LS5421 Features

* package: clear 5 mm (T1 ¾) package, colored (super-red and yellow), colorless (orange and green)

* feature of the device: narrow viewing angle

* wavelength: 628 nm (super-red), 606 nm (orange), 587 nm (yellow), 570 nm (green)

* viewing angle: narrow (20°)

LS5421 Datasheet (98.87 KB)

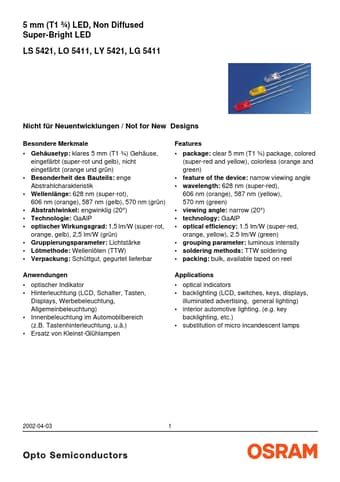

Preview of LS5421 PDF
LS5421 Datasheet Preview Page 2 LS5421 Datasheet Preview Page 3

Datasheet Details

Part number:

LS5421

Manufacturer:

OSRAM

File Size:

98.87 KB

Description:

Super-bright led.
