LS545 - Surface Mount Schottky Rectifier

Download the LS545 datasheet PDF. This datasheet also covers the LS54-GOOD variant, as both devices belong to the same surface mount schottky rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • Schottky barrier diodes.
  • Low forward voltage drop.
  • Low leakage current.
  • Moisture sensitivity: level 1, per J-STD-020.
  • Solder dip 260 °C, 10 s.
  • Low profile， typical thickness 1.0mm.
  • AEC-Q101 qualified eSGB (SMAF) Typical.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LS54-GOOD-ARK.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number LS545
Manufacturer GOOD-ARK
File Size 225.55 KB
Description Surface Mount Schottky Rectifier
Datasheet download datasheet LS545 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LS5420 5 mm (T1 3/4) LED / Non Diffused Siemens Semiconductor
LS5421 Super-Bright LED OSRAM
LS5421 5 mm T1 3/4 LED / Non Diffused Super-Bright LED Siemens Semiconductor
LS5436 Hyper-Bright LED OSRAM
LS5436 Hyper 5 mm T1 LED / Non Diffused Hyper-Bright LED Siemens Semiconductor

Other Datasheets by GOOD-ARK

Part Number Description
LS54 Surface Mount Schottky Rectifier
LS56 Surface Mount Schottky Rectifier
LS565 Surface Mount Schottky Rectifier
LS565T Surface Mount Schottky Rectifier
LS5BH Surface Mount Schottky Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

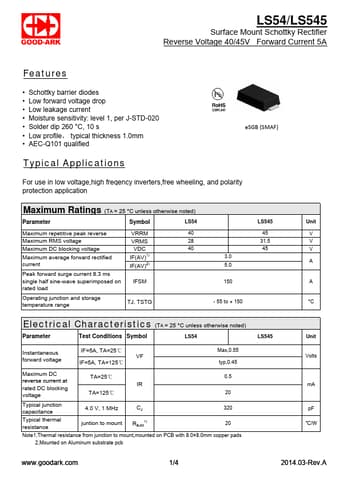

LS54/LS545 Surface Mount Schottky Rectifier Reverse Voltage 40/45V Forward Current 5A Features • Schottky barrier diodes • Low forward voltage drop • Low leakage current • Moisture sensitivity: level 1, per J-STD-020 • Solder dip 260 °C, 10 s • Low profile， typical thickness 1.0mm • AEC-Q101 qualified eSGB (SMAF) Typical Applications For use in low voltage,high freqency inverters,free wheeling, and polarity protection application Maximum Ratings (TA = 25 °C unless otherwise noted) Parameter Symbol LS54 Maximum repetitive peak reverse Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current Peak forward surge current 8.
