OLS-137RGB, OLS-137 - Series 137 - 1206 RGB Type OLS-137 RGB

Datasheet Details

Part number	OLS-137RGB, OLS-137
Manufacturer	OSA Opto Light GmbH
File Size	190.64 KB
Description	Series 137 - 1206 RGB Type OLS-137 RGB
Datasheet	OLS-137_OSAOptoLightGmbH.pdf
Note	This datasheet PDF includes multiple part numbers: OLS-137RGB, OLS-137. Please refer to the document for exact specifications by model.

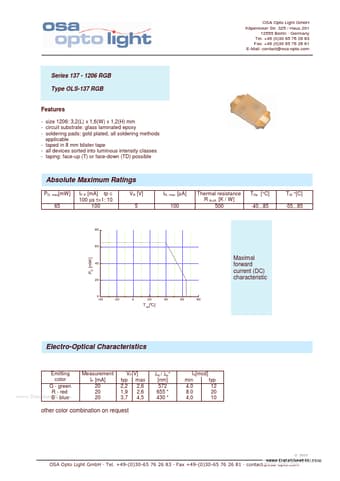

- size 1206: 3,2(L) x 1,6(W) x 1,2(H) mm - circuit substrate: glass laminated epoxy - soldering pads: gold plated, all soldering methods applicable - taped in 8 mm blister tape - all devices sorted into luminous intensity classes - taping: face-up (T) or face-down (TD) possible Absolute Maximum Ratings PD, max[mW] 65 IF,P [mA] tp ≤ 100 µs τ=1: 10 100 VR [V] 5 IR, max [µA] 100 Thermal resistance R thJA [K / W] 500 TOp [°C] -4085 TSt °[C] -5585 80 60 40 20 Maximal forward current (DC) charac.
